What is a Keyboard Matrix and How Does It Work?

If you're looking to understand the inner workings of a keyboard, you might have come across the term keyboard matrix. This is a common question among DIY enthusiasts and electronics hobbyists who are building or repairing a keyboard. The answer is: A keyboard matrix is a grid-like structure of rows and columns that allows a microcontroller to detect key presses efficiently. It reduces the number of input/output pins required to read multiple keys.

Keyboard Matrix

A wiring system in keyboards that uses rows and columns to detect key presses with fewer pins.

Matrix Keyboard

A type of keyboard that uses a matrix layout to connect keys to a microcontroller.

To understand how it works, consider the following steps:

1. Each key is placed at the intersection of a row and a column.
2. The microcontroller sends a signal down a row and listens for a response on the columns.
3. If a key is pressed, the signal is completed, and the microcontroller identifies the key based on the row and column.

For example, a 3x4 keyboard matrix has 3 rows and 4 columns, allowing for 12 keys to be connected using only 7 pins (3 + 4). This is much more efficient than connecting each key individually.

How to Choose the Right Keyboard Matrix for Your Project?

If you're working on a custom keyboard or a DIY electronics project, selecting the right keyboard matrix is crucial. This is a common concern for hobbyists and engineers who want to optimize their design for cost and performance. The answer is: Choose a keyboard matrix based on the number of keys you need, the type of microcontroller you're using, and the space available on your PCB. Here’s how to make the right choice:

1. Determine the number of keys you need. For example, a matrix 6 keyboard is suitable for 6 keys, while a matrix 7x3 supports 21 keys.
2. Check the pin requirements. A matrix 60 keyboard may require more complex wiring and a more powerful microcontroller.
3. Consider the physical size. A matrix keyboard 16 keys is compact and ideal for small devices like calculators or remote controls.

Here’s a comparison of some common keyboard matrix types:

Matrix Type	Keys Supported	Rows x Columns	Typical Use Case
3x4 Keyboard Matrix	12	3 x 4	Basic calculators, small keypads
Matrix Keyboard 24	24	4 x 6	Industrial control panels
Matrix 6 Keyboard	6	2 x 3	Simple user input devices

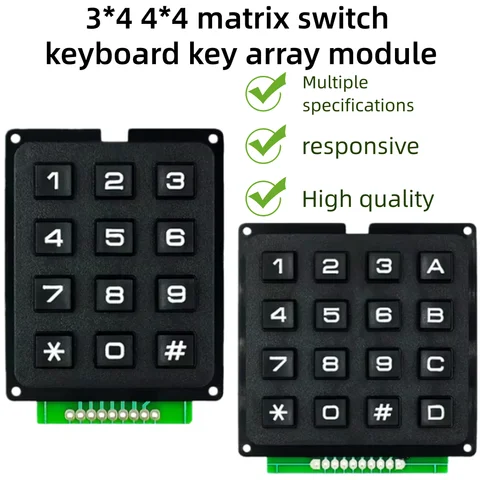

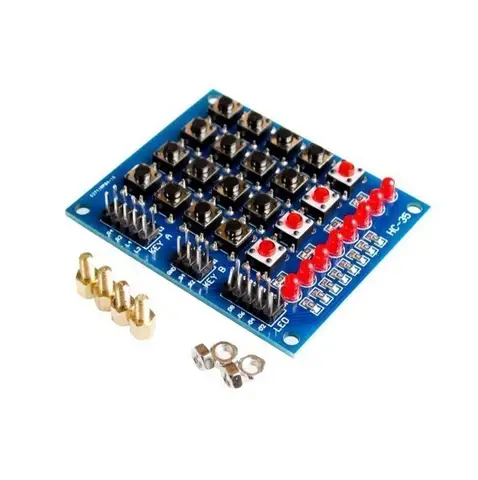

Matrix Keyboard 16 Keys	16	4 x 4	Compact keypads, remote controls

What Are the Common Issues with Keyboard Matrix and How to Fix Them?

If you're experiencing problems with your keyboard, such as keys not working or ghosting, the issue might be related to the keyboard matrix. This is a common problem for users of matrix keypad systems in embedded projects. The answer is: Common issues include ghosting, short circuits, and incorrect key detection. These can often be resolved by checking the wiring, using pull-up resistors, or adjusting the scanning algorithm. Here’s how to troubleshoot and fix these issues:

1. Ghosting: This occurs when pressing multiple keys causes incorrect key detection. To fix it, use a keypad matrix keyboard with a proper scanning algorithm that prevents ghosting.
2. Short Circuits: Check for solder bridges or damaged traces on the PCB. A matrix keyboard circuit should be carefully inspected for continuity issues.
3. Incorrect Key Detection: Ensure that the microcontroller is correctly configured to read the matrix. A keyboard matrix circuit should be tested with a multimeter to verify the connections.

In one of my projects, I used a Clix Matrix Keyboard and encountered ghosting when pressing multiple keys. I resolved it by implementing a matrix keyboard 7x3 layout with a more advanced scanning routine.

User Reviews of Keyboard Matrix Products

If you're considering purchasing a keyboard matrix for your project, it's helpful to look at user feedback. This is a common concern for buyers who want to ensure they're getting a reliable product. The answer is: Most users report that matrix keypads are reliable and easy to integrate, especially when paired with the right microcontroller. However, some users have noted issues with ghosting and poor soldering on cheaper models. Here are some common user experiences:

Product	User Rating	Common Feedback
3x4 Keyboard Matrix	4.5/5	Easy to use, good for basic projects
Matrix Keyboard 24	4.2/5	Reliable but requires careful wiring
Matrix Elite Keyboard	4.7/5	High-quality build, ideal for advanced users
Clix Matrix Keyboard	4.3/5	Good value for money, but some ghosting issues reported

Other Related Products and Uses

If you're interested in keyboard matrix products, you might also want to explore related options. These include matrix keyborad, matrix lab keyboard, and 5 matrix keyboard, which are used in various applications from educational labs to industrial control systems. For example, the Matrix Lab Keyboard is often used in university settings for teaching electronics and programming. The 5 Matrix Keyboard is a compact option for embedded systems that require a small number of keys. In conclusion, whether you're building a custom keyboard or troubleshooting an existing one, understanding the keyboard matrix is essential. By choosing the right matrix type and addressing common issues, you can ensure a reliable and efficient input system for your project.
