Understanding the 3.96 Pin Header: A Comprehensive Guide for Electronics Enthusiasts

The 3.96 pin header is a precise, high-precision male pin connector commonly used in electronics prototyping, PCB assembly, and modular circuit design. It features a 3.96mm pitch (center-to-center spacing between pins), making it ideal for applications requiring tight tolerance and reliable electrical contact. This guide explores the technical specifications, real-world applications, and best practices for selecting and using 3.96mm pitch pin headers, ensuring optimal performance in your projects.

What Is a 3.96 Pin Header? Understanding the Core Concept

A 3.96 pin header refers to a male pin connector with a 3.96mm pitch, designed to interface with female headers or sockets on circuit boards. These headers are typically used for connecting daughterboards, sensors, or expansion modules to a main PCB. The 3.96mm pitch is less common than the standard 2.54mm or 2.0mm, but it offers a compact solution for high-density layouts.

Pin Header

A series of male pins arranged in a straight or dual-row configuration, used to establish electrical connections between two circuit boards or components.

Pitch

The distance between the centers of adjacent pins. In this case, 3.96mm, which is critical for compatibility with female headers and socket connectors.

Male Pin Header

A type of connector with protruding pins that insert into female sockets, providing a secure and conductive connection.

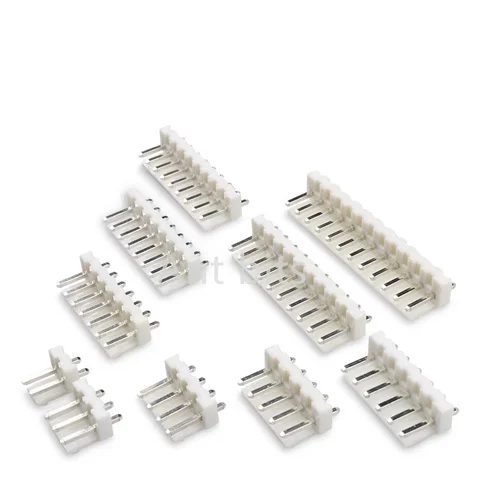

90-Degree Pin Header

A variant where the pins are bent at a 90-degree angle, allowing for vertical mounting and space-saving layouts on PCBs.

Why Choose a 3.96mm Pitch Over Standard Sizes?

While 2.54mm and 2.0mm pitch headers dominate the market, the 3.96mm pitch offers a unique balance between compactness and mechanical stability. It is particularly useful in applications where space is limited but high reliability is required. For example, in embedded systems, industrial control panels, or custom IoT devices, the 3.96mm pitch allows for tighter component spacing without sacrificing durability.
The 3.96mm pitch is often found in dual-row male pin headers, such as 2x10-pin configurations, which provide 20 connection points in a compact footprint. These are ideal for connecting microcontroller boards, sensor arrays, or power modules.

Real-World Application: Connecting a Sensor Module to a Microcontroller

Imagine you're building a smart environmental monitoring system using an ESP32 microcontroller and a series of sensors (temperature, humidity, and gas). You need to connect these sensors via a modular header system to keep your main PCB clean and organized.

1. Identify the required pin count and pitch: Your sensor module uses a 2x10 pin layout with 3.96mm pitch.
2. Select a compatible male pin header: Choose a 20-pin, 2x10, 3.96mm pitch male pin header with 90-degree orientation for vertical mounting.
3. Verify compatibility with female socket: Ensure the female socket on the sensor module also uses a 3.96mm pitch to avoid misalignment or poor contact.
4. Secure the connection: Use a gentle press to insert the male header into the female socket. Avoid excessive force to prevent bending pins.
5. Test the connection: Use a multimeter to verify continuity across all pins before powering the system.

This setup ensures a reliable, modular, and maintainable design—perfect for prototyping and production.

Comparing 3.96mm Pin Headers with Common Alternatives

Below is a comparison of 3.96mm pin headers with standard 2.54mm and 2.0mm pitch headers:

Feature	3.96mm Pitch (2x10)	2.54mm Pitch (2x10)	2.0mm Pitch (2x10)
Pitch (mm)	3.96	2.54	2.0
Pin Count	20	20	20
Common Use Case	Compact industrial modules, high-density PCBs	General prototyping, Arduino, Raspberry Pi	High-density microcontroller boards, miniaturized devices
Mounting Type	Through-hole, 90-degree bend available	Through-hole, straight or 90-degree	Through-hole, often straight
Compatibility	Requires matching female header	Widely compatible	Limited availability, requires custom sockets

Key Specifications and Selection Tips

When purchasing a 3.96mm pin header, consider the following parameters:
- Material: Typically made of phosphor bronze or brass with tin plating for corrosion resistance and good conductivity.
- Pin Length: Standard lengths range from 5mm to 8mm; longer pins are better for through-hole soldering.
- Orientation: Choose straight or 90-degree for space-constrained designs.
- Packaging: Sold in lots of 20, 50, or 100 units—buy in bulk for cost efficiency in prototyping.
- Brand & Origin: Reputable brands like Hblljmjn (China) offer consistent quality and precise manufacturing.

Common Pitfalls and How to Avoid Them

- Mismatched Pitch: Always double-check the pitch of both male and female connectors. A 3.96mm header will not fit a 2.54mm socket.
- Bent Pins: Use a pin straightener tool if pins are slightly bent after insertion.
- Poor Soldering: Ensure pins are fully inserted into the PCB holes before soldering to avoid cold joints.
- Over-tightening: Avoid forcing the header into the socket—this can damage both the header and the PCB.

Recommended Use Cases for 3.96mm Pin Headers

- Industrial control panels with space constraints
- Modular sensor hubs in IoT devices
- Custom PCB expansions for microcontrollers
- Robotics and automation systems requiring reliable, repeatable connections
- High-reliability prototypes where mechanical stability is critical
For users seeking a 20-piece 3.96mm pitch 2x10 pin header with 90-degree orientation, the Hblljmjn model offers a reliable, cost-effective solution with precise manufacturing and consistent pin alignment. It’s ideal for both hobbyists and professionals working on compact, high-performance electronics projects.
In summary, the 3.96 pin header is a specialized yet highly effective connector for modern electronics. With its precise pitch, robust design, and compatibility with high-density layouts, it’s a smart choice for engineers and makers who demand reliability and precision in their builds.
