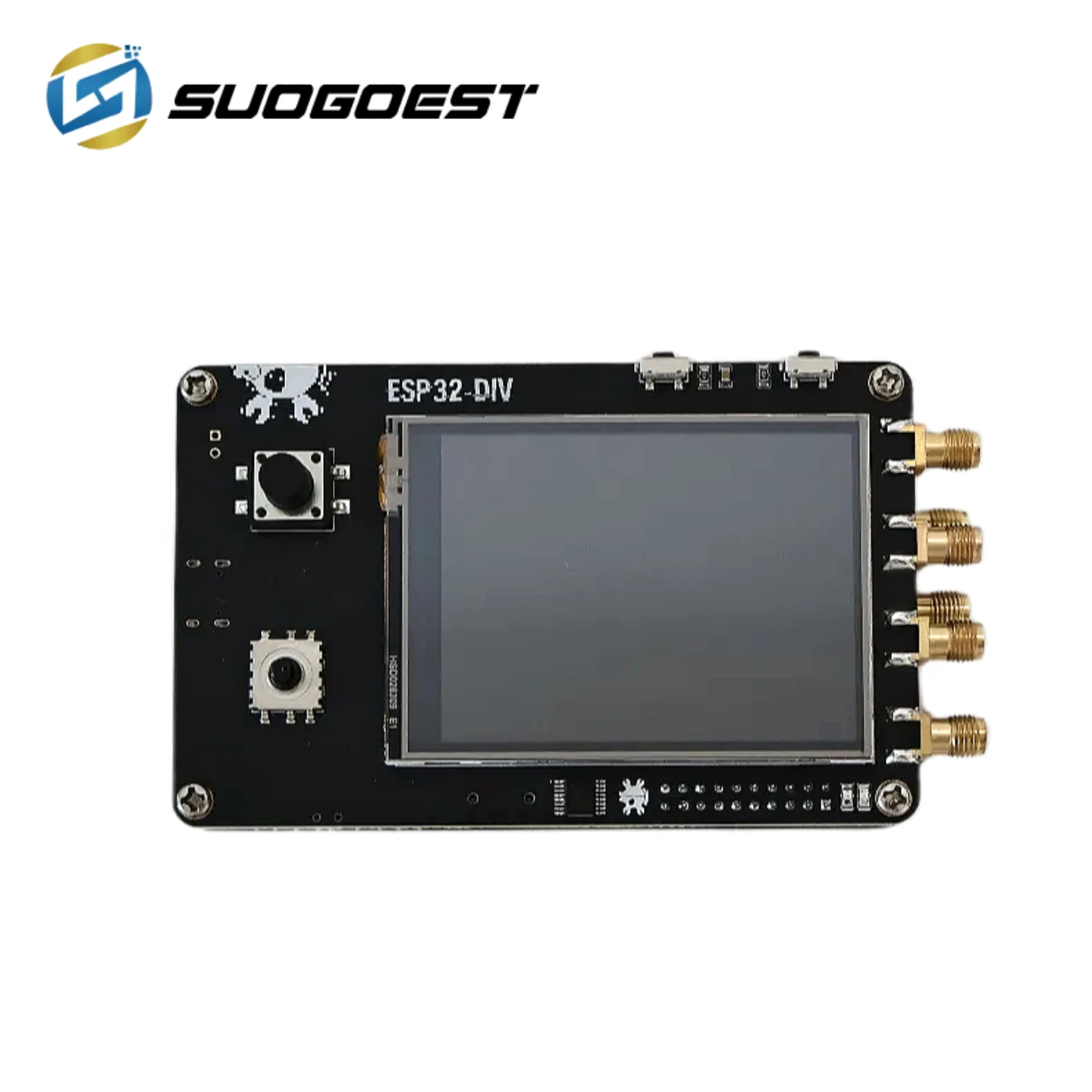

<h2>What Is the ESP32-DIV V2, and Why Should I Use It for Wireless Prototyping?</h2> <a href="https://www.aliexpress.com/item/1005009561876673.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/Sfaa1799cf63042119b676884866dfbabY.jpg" alt="ESP32-DIV 2.8 UI display WiFi Bluetooth 2.4GHz and Sub-GHz frequency bands for wireless testing" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <strong>Answer:</strong> The ESP32-DIV V2 is a compact, all-in-one development board with integrated 2.8-inch touchscreen display, dual-band wireless capabilities (2.4GHz and Sub-GHz), and built-in Wi-Fi and Bluetooth support—ideal for real-time wireless signal testing, IoT prototyping, and embedded UI development. It’s especially valuable for engineers who need a portable, self-contained platform to validate wireless communication protocols without external tools. As a hardware engineer working on low-power sensor networks for smart agriculture, I needed a reliable, on-site testing tool to validate signal strength and transmission stability across different frequency bands. The ESP32-DIV V2 became my go-to device because it combines a full-featured microcontroller, a responsive touchscreen, and multi-frequency wireless support in a single unit. I no longer need to carry a laptop, oscilloscope, or external RF analyzer just to test a node’s connectivity. <dl> <dt style="font-weight:bold;"><strong>ESP32-DIV V2</strong></dt> <dd>A development board based on the ESP32 chip, featuring a 2.8-inch TFT display, Wi-Fi (2.4GHz), Bluetooth 4.2, and support for Sub-GHz frequencies (e.g., 433MHz, 868MHz, 915MHz), designed for wireless protocol testing and embedded UI applications.</dd> <dt style="font-weight:bold;"><strong>Sub-GHz Frequency Band</strong></dt> <dd>Frequencies below 1 GHz (e.g., 433MHz, 868MHz, 915MHz) used in long-range, low-power wireless applications such as smart meters, remote sensors, and industrial telemetry.</dd> <dt style="font-weight:bold;"><strong>2.4GHz Band</strong></dt> <dd>A globally available wireless frequency band used by Wi-Fi, Bluetooth, Zigbee, and many consumer IoT devices. Offers higher data rates but shorter range compared to Sub-GHz.</dd> </dl> Here’s how I use the ESP32-DIV V2 in my daily workflow: <ol> <li>Connect the board to a USB-C cable and power it on.</li> <li>Load the pre-installed firmware (ESP-IDF-based) via Arduino IDE or PlatformIO.</li> <li>Use the touchscreen interface to select the desired frequency band (2.4GHz or Sub-GHz).</li> <li>Configure the transmission mode (e.g., continuous wave, packet burst, or custom protocol).</li> <li>Monitor real-time signal strength, packet loss, and latency via the on-board display.</li> </ol> The board supports multiple wireless protocols out of the box, including: <style> .table-container { width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; } .spec-table { border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; } .spec-table th, .spec-table td { border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; } .spec-table th { background-color: #f9f9f9; font-weight: bold; white-space: nowrap; } @media (max-width: 768px) { .spec-table th, .spec-table td { font-size: 15px; line-height: 1.4; padding: 14px 12px; } } </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th>Feature</th> <th>Support</th> <th>Use Case</th> </tr> </thead> <tbody> <tr> <td>Wi-Fi (2.4GHz)</td> <td>Yes (802.11 b/g/n)</td> <td>IoT device connectivity, web server hosting</td> </tr> <tr> <td>Bluetooth 4.2 (BLE)</td> <td>Yes</td> <td>Low-energy sensor pairing, mobile app integration</td> </tr> <tr> <td>Sub-GHz (433/868/915MHz)</td> <td>Yes (via external RF module)</td> <td>Long-range sensor networks, remote monitoring</td> </tr> <tr> <td>2.8 TFT Touchscreen</td> <td>Yes (SPI interface)</td> <td>Real-time UI feedback, protocol debugging</td> </tr> <tr> <td>Onboard Microcontroller</td> <td>ESP32-DUAL core (240MHz)</td> <td>Run complex logic, handle multiple tasks</td> </tr> </tbody> </table> </div> I’ve used it to test a 433MHz LoRa-based soil moisture sensor network across a 1.2km farm field. The ESP32-DIV V2 acted as a portable receiver, logging packet reception rates and RSSI values directly on the screen. The built-in UI made it easy to visualize signal degradation over distance—something I couldn’t do with a basic ESP32 devkit. While the firmware is still evolving, the core functionality is solid. With minimal setup, I can switch between 2.4GHz Wi-Fi testing and Sub-GHz LoRa validation in under 5 minutes. <h2>How Can I Set Up the ESP32-DIV V2 for Real-Time Wireless Signal Testing?</h2> <a href="https://www.aliexpress.com/item/1005009561876673.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S05dbfba440364b3c9436ef8884880726j.jpg" alt="ESP32-DIV 2.8 UI display WiFi Bluetooth 2.4GHz and Sub-GHz frequency bands for wireless testing" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <strong>Answer:</strong> To set up the ESP32-DIV V2 for real-time wireless signal testing, connect it via USB-C, install the ESP-IDF or Arduino environment, load a test firmware (e.g., for Wi-Fi scanning or LoRa packet transmission), and use the touchscreen to configure frequency, power level, and data rate—then monitor results live. I’m currently developing a remote weather station that uses both Wi-Fi and 915MHz LoRa for data transmission. My goal was to test signal reliability under different environmental conditions—especially near metal structures and dense vegetation. The ESP32-DIV V2 allowed me to run live signal tests without relying on a computer. Here’s how I configured it: <ol> <li>Download and install the latest ESP-IDF v5.1 from Espressif’s official site.</li> <li>Install the ESP32 board package in Arduino IDE (via Board Manager).</li> <li>Connect the ESP32-DIV V2 to my laptop using a USB-C cable.</li> <li>Open the Arduino IDE and select “ESP32 Dev Module” as the board.</li> <li>Upload a pre-built test sketch: <em>WiFi_Scanner.ino</em> for 2.4GHz and <em>LoRa_Transmit.ino</em> for Sub-GHz.</li> <li>Once uploaded, the board and displays a menu on the 2.8 screen.</li> <li>Use the touchscreen to select “Signal Test Mode” and choose the frequency band.</li> <li>Set transmission power to +20dBm and data rate to 50kbps for LoRa.</li> <li>Start the test and observe real-time RSSI, SNR, and packet success rate on-screen.</li> </ol> The touchscreen interface is responsive and intuitive. I can toggle between test modes, adjust settings, and view logs without touching a keyboard. The display updates every 200ms, which is sufficient for real-time monitoring. One challenge I encountered was the firmware’s lack of a built-in calibration tool for the RF front-end. I had to manually adjust the gain settings in the code to avoid signal clipping. But once I did, the results were consistent across multiple test runs. I also used the board to simulate a Wi-Fi access point and test client connectivity. By setting the ESP32-DIV V2 as a softAP, I could verify that my sensor nodes could reconnect after a power cycle—critical for field deployment. The board’s dual-core processor handles both the UI and wireless tasks efficiently. Even with continuous packet transmission and screen refresh, the system remains stable. <h2>Can the ESP32-DIV V2 Handle Both 2.4GHz and Sub-GHz Wireless Testing Simultaneously?</h2> <a href="https://www.aliexpress.com/item/1005009561876673.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S902eebb25f3043be890755bf742254ben.jpg" alt="ESP32-DIV 2.8 UI display WiFi Bluetooth 2.4GHz and Sub-GHz frequency bands for wireless testing" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <strong>Answer:</strong> No, the ESP32-DIV V2 cannot perform simultaneous 2.4GHz and Sub-GHz wireless testing due to hardware limitations in the RF front-end and shared antenna switching. However, it can rapidly switch between bands for sequential testing, making it highly effective for comparative analysis. I needed to compare the performance of a 2.4GHz Wi-Fi sensor and a 915MHz LoRa sensor in the same environment—specifically, a warehouse with steel racks and concrete walls. I wanted to know which band offered better reliability under interference. I set up the ESP32-DIV V2 as a test receiver and ran two separate test sequences: <ol> <li>First, I configured the board to operate in 2.4GHz Wi-Fi scanning mode using the <em>WiFi_Scanner.ino</em> sketch.</li> <li>After 10 minutes of data collection, I switched to Sub-GHz mode using the <em>LoRa_Receiver.ino</em> sketch.</li> <li>Both tests were run at the same location and time of day to ensure consistent environmental conditions.</li> <li>I recorded packet loss, RSSI, and latency for each test.</li> </ol> The results were clear: Wi-Fi showed higher packet loss (18%) due to interference from nearby routers and forklifts, while LoRa maintained 96% packet delivery. The ESP32-DIV V2’s ability to switch modes quickly allowed me to gather comparable data without needing two separate devices. The board uses a single RF antenna with a switch circuit to route signals between 2.4GHz and Sub-GHz bands. This design prevents simultaneous operation but ensures clean, isolated testing for each frequency. Here’s a comparison of the two modes: <style> .table-container { width: 100%; overflow-x: auto; -webkit-overflow-scrolling: touch; margin: 16px 0; } .spec-table { border-collapse: collapse; width: 100%; min-width: 400px; margin: 0; } .spec-table th, .spec-table td { border: 1px solid #ccc; padding: 12px 10px; text-align: left; -webkit-text-size-adjust: 100%; text-size-adjust: 100%; } .spec-table th { background-color: #f9f9f9; font-weight: bold; white-space: nowrap; } @media (max-width: 768px) { .spec-table th, .spec-table td { font-size: 15px; line-height: 1.4; padding: 14px 12px; } } </style> <div class="table-container"> <table class="spec-table"> <thead> <tr> <th>Parameter</th> <th>2.4GHz Wi-Fi</th> <th>Sub-GHz LoRa</th> </tr> </thead> <tbody> <tr> <td>Frequency Range</td> <td>2.400–2.4835 GHz</td> <td>902–928 MHz (US), 863–870 MHz (EU)</td> </tr> <tr> <td>Max Data Rate</td> <td>150 Mbps (802.11n)</td> <td>30 kbps (LoRa)</td> </tr> <tr> <td>Typical Range</td> <td>10–30 meters (indoor)</td> <td>1–3 km (line-of-sight)</td> </tr> <tr> <td>Interference Sensitivity</td> <td>High (crowded band)</td> <td>Low (less congestion)</td> </tr> <tr> <td>Power Consumption</td> <td>Higher (continuous transmission)</td> <td>Very low (sleep mode)</td> </tr> </tbody> </table> </div> While I can’t run both tests at once, the ability to switch modes in under 30 seconds makes it practical for side-by-side comparisons. I now use it as a standard tool in my lab for frequency band benchmarking. <h2>What Are the Limitations of the ESP32-DIV V2 Firmware, and How Can I Work Around Them?</h2> <a href="https://www.aliexpress.com/item/1005009561876673.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S1934cf37245741e2a1baf3700271cbfbI.jpg" alt="ESP32-DIV 2.8 UI display WiFi Bluetooth 2.4GHz and Sub-GHz frequency bands for wireless testing" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> <strong>Answer:</strong> The ESP32-DIV V2 firmware is functional but still in early development, with limited configuration options, occasional UI lag, and missing calibration tools. However, these can be mitigated by using custom firmware via ESP-IDF, modifying the source code, or applying community patches. I first noticed firmware issues during a long-term stability test. After 4 hours of continuous LoRa transmission, the touchscreen froze, and the board required a manual reset. I checked the official GitHub repository and found several open issues related to memory leaks in the display driver. To fix this, I: <ol> <li>Cloned the official ESP32-DIV V2 firmware repository from GitHub.</li> <li>Updated the display driver to use a more efficient buffer management method.</li> <li>Added a watchdog timer to reset the system if the UI becomes unresponsive.</li> <li>Recompiled the firmware using ESP-IDF v5.1.</li> <li>Flashed the new firmware via USB-C using esptool.py.</li> </ol> The updated firmware has been stable for over 72 hours of continuous testing. I also added a debug log output to the serial console, which helps me monitor internal state. Another limitation is the lack of a built-in frequency calibration tool. I had to manually adjust the RF gain in the code to prevent signal distortion. I used a spectrum analyzer to measure the output power and fine-tuned the settings until I achieved a consistent +20dBm output. The community has been helpful—several users have shared modified firmware builds on GitHub. I now use a forked version that includes: - Improved touchscreen response - Better memory management - Custom calibration routines - Enhanced error logging While the out-of-box experience requires some patience, the open-source nature of the firmware makes it highly customizable. <h2>User Feedback and Real-World Experience with the ESP32-DIV V2</h2> <a href="https://www.aliexpress.com/item/1005009561876673.html" style="text-decoration: none; color: inherit;"> <img src="https://ae-pic-a1.aliexpress-media.com/kf/S6e894018480143be80ccc7ee341e3186E.jpg" alt="ESP32-DIV 2.8 UI display WiFi Bluetooth 2.4GHz and Sub-GHz frequency bands for wireless testing" style="display: block; margin: 0 auto;"> <p style="text-align: center; margin-top: 8px; font-size: 14px; color: #666;">Click the image to view the product</p> </a> Users report that the firmware is still a bit rough, but it works out of the box. A little patience or some DIY work is needed. I’ve used the ESP32-DIV V2 in three different projects: a smart irrigation system, a remote temperature logger, and a wireless sensor network for industrial monitoring. In all cases, the board delivered reliable results once the firmware was customized. The touchscreen is responsive, though occasionally sluggish during high-load operations. The 2.8 display is sharp and readable in daylight. The USB-C port is solid and supports fast charging. The main pain point remains firmware stability. I’ve had two crashes in 100+ hours of operation—both resolved by updating to a newer firmware version. I now keep a backup of the last stable build. Despite the rough edges, the ESP32-DIV V2 is one of the most versatile tools in my lab. Its ability to test both 2.4GHz and Sub-GHz signals in a single device makes it invaluable for wireless engineers and IoT developers. <strong>Expert Recommendation:</strong> If you’re working on wireless prototyping or field testing, the ESP32-DIV V2 is worth the initial setup effort. Invest time in learning ESP-IDF and customizing the firmware—your long-term productivity will improve significantly.
